BDTX 100
BDTX

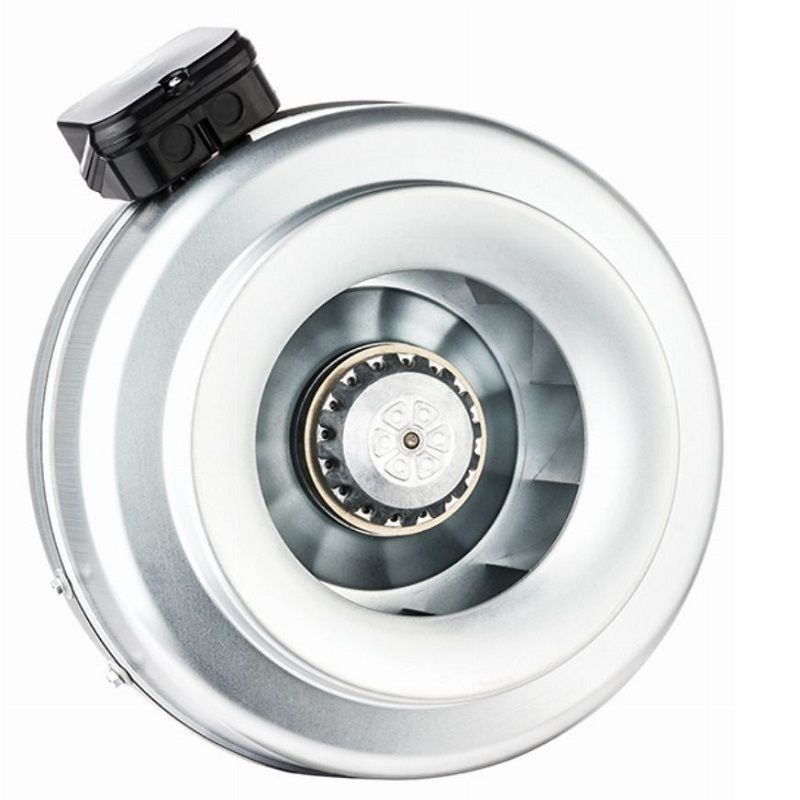

Device Components and Material Properties
The case and fan are made of high quality galvanized sheet metal which is pressed against corrosion. All models have an external rotor motor with a closed structure and have air transport at max.40ºC. On request, the motor can be produced as thermally protected against high temperature. The terminal box and mounting legs are supplied with the product as standard. Suction and discharge nozzles are compatible with duct diameters and can be connected by clamp.
Technical Parameters
| Voltage (nominal) |
220 V |
| Phase |
1 Ph |
| Input Power |
0.06 kW |
| Current |
0.3 A |
| Impeller Speed |
2610 d/d |
| Air Flow |
240 m³/h |
| IP Class |
IP 44 |
| Maximum Transportable Air Temperature |
-20°C / +40°C°C |
